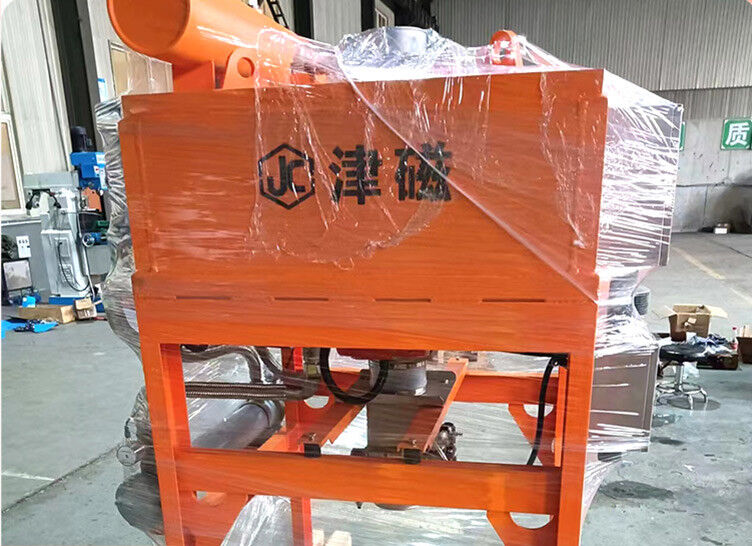

Suspended Electromagnetic Iron Remover with 1000-15000Gs Magnetic Field Strength, Energy Saving and Fully Sealed Structure for Harsh Environments

Product Introduction

The Suspended Electromagnetic Iron Remover produced by Tianjin Jinci Manufacturer is a high-efficiency and reliable iron removal equipment specially designed for extracting ferromagnetic impurities from bulk non-magnetic materials. The product features a fully sealed structure, with its interior potted with specialized electrical resin, making it dustproof, rainproof, and corrosion-resistant, allowing for long-term stable operation in harsh environments. This equipment is widely used in industries such as power, mining, metallurgy, building materials, coal preparation, and chemicals. It effectively protects equipment like crushers and grinders, prevents longitudinal tearing of conveyor belts, and improves product purity .

Core Advantages

• High Efficiency:​ Utilizes a computer-simulated magnetic circuit design with great magnetic penetration depth and strong magnetic force. The magnetic field strength can reach 1000-15000Gs, enabling effective removal of ferromagnetic substances weighing between 0.1-35 kg mixed within non-magnetic materials .

• Energy Saving:​ Saves 15%-20% electricity compared to oil-cooled models of the same specification. The magnetic field can be switched on and off at will (magnetic when powered, demagnetized when off), resulting in significant energy savings .

• Intelligent Control:​ Equipped with an automatic iron discharge mechanism, enabling unattended fully automatic operation, reducing manual operation and maintenance costs .

Product Parameters

Application Case

Case: A Ceramic Raw Material Plant in  Guangdong

This plant originally had two production lines, each producing 400 tons of finished product daily. However, the raw material produced had an iron content above 0.14% and a whiteness degree between 48-52, failing to meet quality standards. Later, four KJLSL-500G electromagnetic iron removers were added to each production line. After the installation, each line still produces 400 tons daily, but the iron content is now <0.1%, and the whiteness degree has reached over 60. Product quality improved significantly, greatly enhancing product competitiveness .

Q&A

Q1: The electromagnetic iron remover is not working. The operation indicator light is on, but the excitation ammeter shows no reading. What could be the reason?

A: This might be due to an improperly connected power supply for the iron remover. Check the wiring: ensure the connection between the iron remover and the electric control cabinet is normal .

Q2: The electromagnetic iron remover is not working, and the operation indicator light is off. What could be the reason?

A: This could be caused by a blown fuse in the control cabinet. Check the reason for the blown fuse and inspect the iron remover's wiring for any short circuits. Replace the fuse .

Q3: The electromagnetic iron remover trips suddenly during operation. What could be the reason?

A: Possible reasons include poor wiring, abnormal insulation, or abnormal removal resistance inside the control cabinet. Check the internal wiring and insulation of the control cabinet, and inspect if the removal resistance is normal. Address any abnormalities promptly .
